MPPT Controller Integrated Solar Light 7800lm For Road Lighting

Product Details:
Place of Origin: CHINA
Brand Name: SolarTimes, Smartimes
Certification: CE,CB
Model Number: SLS-ST3

Detail Information

Product Name: Bificial Panel Solar Street Light Solar Panel: Monocrystalline Panel
Battery: LiFePO4 Battery 768WH Charging Time: 4-6 Hrs
Control Type: Remote Control/ Time Control Warranty: 3 Years
Product Material: Aluminium Product Color: Black
High Light:

MPPT Controller Integrated Solar Light


Integrated Solar Light 7800lm

Product Description

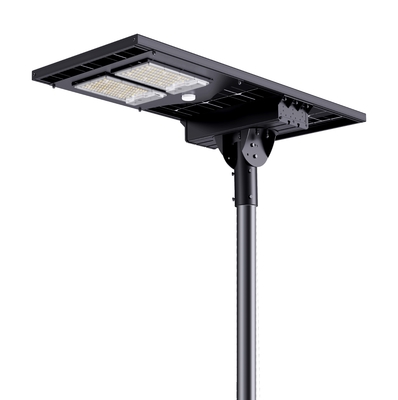

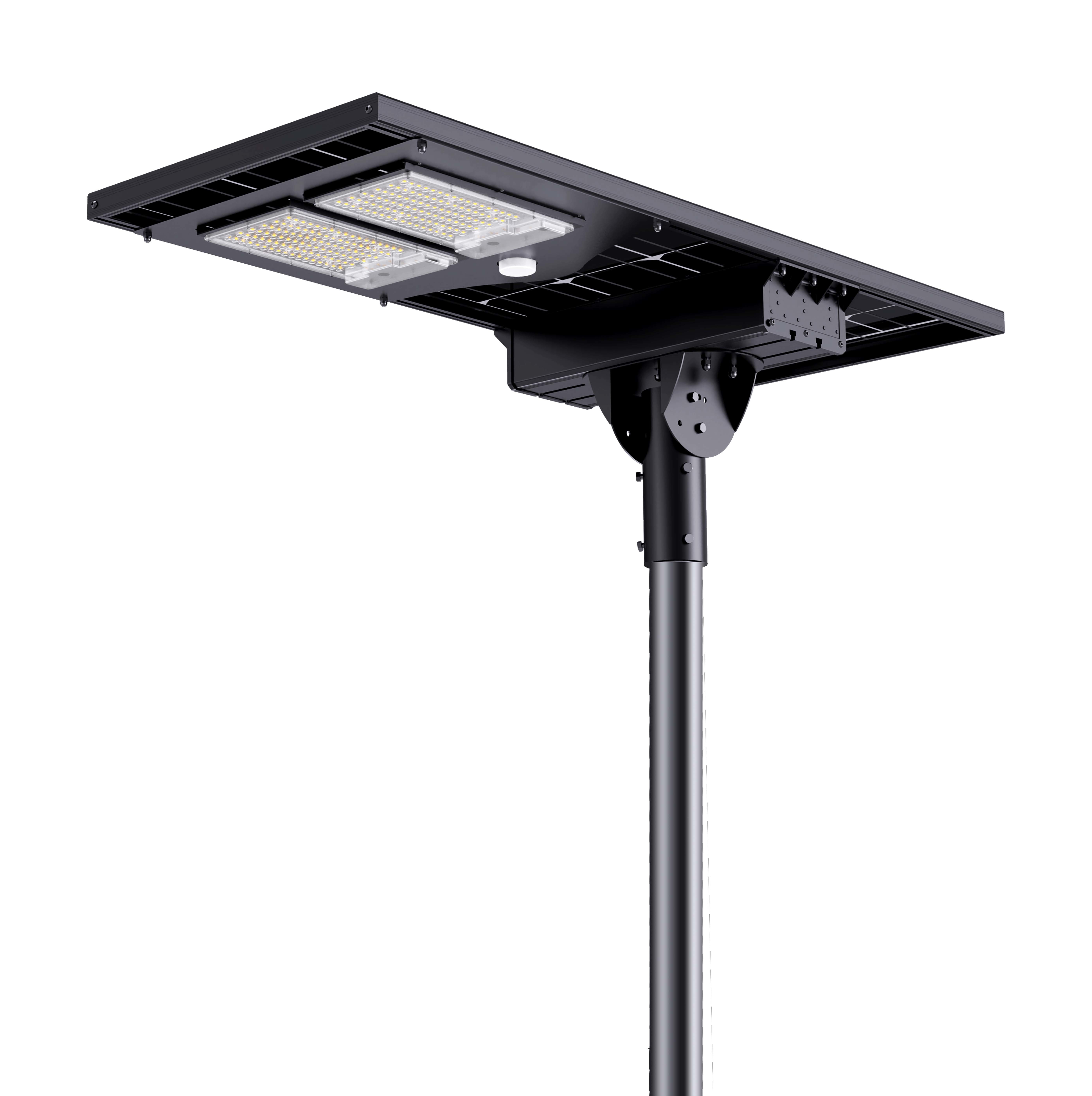

MPPT Controller Professional Solar Street Light 7800 Lm Road Lighting Factory


SLS-ST3 super bright LED Solar street light for road lighting with unique design - bificial monocrystalline solar panel, with double-panel maximizes the conversion of solar energy into electricit compare with other all-in-one solar street light.

Built in MPPT ( Maximum Power Point Tracking) is more efficient than other PWM controlled solar street lights.

Special Modular design of battery and LED chips and all-in-one design make the installation and transportation costs reduced dramatically. No electrical connection needed. 0 electricity bills.

Using big capacity and deep cycle ( 2000 times) LiFePO4 battery , more durable service life.

Indicator lights of battery capacity display the power of the lamp obviously, which is convenient to observe the charging and discharging of the lamp.

The ilumination area and angle of light can be adjusted reasonably according to the width of the road.

There are 6 working modes for integrated light, you can easily change by remote control according your needs.



Product Specification:


Real Wattage (W) Total Lumens (LM) Product Size LiFePO4 battery capacity Solar Panel (W) Lighting Mode CCT (K)
60 7800 1344*370*35mm 160AH*3.2V 80W+16W Demo: No matter day or night, light "on" for 1 minute. Only for test use.
OFF: Light “off", no matter day or night.

L: At night, 100%-2hrs, 70%-2hrs, 30%-dawn.
T: At night,100%-1hr, 70%-2hrs, 40%-3hrs.
M: At night, 50%-1hr, 100%-3hrs, 30%-dawn.
U: 100%-1hr, 70%-3hrs, 50% light when people come, 20% standby after 20 seconds.

Note: Default is L mode, once a certain mode was set successfully, it will be reserved until you change other modes with remote control.
3000-6500K optional
80 10400 1314*530*35mm 200AH*3.2V 110W+22W
100 13000 1314*530*35mm 260AH*3.2V 110W+22W


MPPT Controller Integrated Solar Light 7800lm For Road Lighting 0MPPT Controller Integrated Solar Light 7800lm For Road Lighting 1MPPT Controller Integrated Solar Light 7800lm For Road Lighting 2MPPT Controller Integrated Solar Light 7800lm For Road Lighting 3




Q1. Can I customized my own lamps?

A: Yes, we can produce the lamp size, finished color, number of lights and more depending on your requirements, you just need provide us a clear picture and specifications.


Q2: Do you offer guarantee for the products?

A: Yes, we offer 3-5 years warranty to our products.
